Bad ball joint tire wear patterns are caused by worn or damaged ball joints that lead to misalignment in the suspension system. This misalignment can result in uneven tire wear, such as cupping, feathering, or edge wear, which negatively impacts handling and safety.
Tire wear is often a telltale sign of underlying issues with the vehicle’s suspension system, and one of the most common culprits is a bad ball joint. Ball joints are critical components that connect the steering knuckles to the control arms, allowing the vehicle’s wheels to move up and down and turn smoothly. When these ball joints wear out, they can cause the tires to wear unevenly, resulting in strange tire wear patterns that can affect the vehicle’s handling and safety.
But how do bad ball joints specifically impact tire wear? And what exactly are the tire wear patterns that indicate a problem with the ball joints? In this article, we will explain how bad ball joints lead to tire wear, explore the different patterns caused by ball joint issues, and discuss the symptoms that may signal the vehicle’s ball joints need attention.
Contents
Ball Joints and Their Function
Ball joints are spherical bearings that connect the control arms to the steering knuckles, enabling the wheels to move up and down while allowing for steering left and right. They are essential components of the vehicle’s suspension system, facilitating smooth handling and stability. Over time, ball joints can wear out due to factors like road conditions, driving habits, and lack of maintenance.
How Bad Ball Joints Cause Uneven Tire Wear

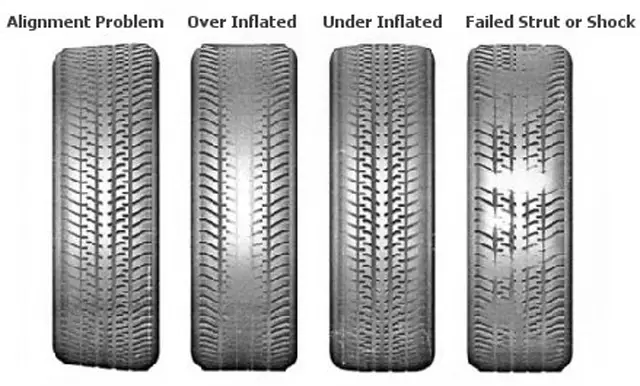

When a ball joint becomes worn or damaged, it can introduce excess play or movement in the suspension system. This misalignment affects the angle at which the tire contacts the road, leading to uneven distribution of weight and pressure across the tire’s surface. As a result, specific wear patterns emerge:
- Scalloping or Cupping: This pattern appears as dips or waves across the tread surface, often caused by a combination of worn ball joints and other suspension issues.
- Edge Wear: Excessive wear on the inner or outer edges of the tire can indicate misalignment due to a faulty ball joint.
- Feathering: This occurs when one side of the tread blocks wears more than the other, creating a saw-tooth effect, often linked to improper alignment caused by worn ball joints.
Identifying Symptoms of Bad Ball Joints
Ball joints are vital components of the vehicle’s suspension system, allowing the wheels to move and turn while maintaining control over the vehicle. However, over time, the ball joints can wear out due to age, excessive driving on rough terrain, or lack of maintenance. When this happens, you may notice several symptoms that indicate the ball joints are failing.
Below are the most common symptoms of bad ball joints, which should be addressed immediately to avoid further damage to the vehicle.
1. Clunking or Popping Noises
One of the most common symptoms of bad ball joints is hearing clunking or popping noises when driving over bumps or making sharp turns. This noise occurs because the ball joint is loose or worn out, allowing excessive movement in the suspension system. As the ball joint becomes more damaged, the noise will likely become more frequent and louder, especially when the vehicle is turning or going over uneven surfaces.
2. Steering Issues
If the ball joints are worn or damaged, you may notice steering issues such as pulling to one side, difficulty in steering, or the steering wheel feeling loose. Worn ball joints can cause the wheels to become misaligned, making it harder for the steering mechanism to work properly. This can result in the vehicle drifting to the left or right, requiring more effort to keep it centered on the road.
3. Vibrations in the Steering Wheel
Vibrations in the steering wheel are another symptom of bad ball joints. This occurs because a loose ball joint affects the suspension and alignment of the wheels, causing them to wobble as the vehicle moves. These vibrations can be felt through the steering wheel, making it harder to maintain control of the vehicle, especially at higher speeds. If left unchecked, this could lead to more serious handling issues.
4. Uneven Tire Wear

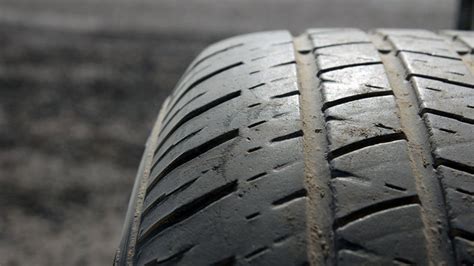

Bad ball joints can lead to misalignment of the vehicle’s wheels, causing uneven tire wear patterns. This can include cupping (dips or waves on the tread), feathering (saw-tooth pattern on the tread edges), or excessive wear on one side of the tire. If you notice the tires wearing out faster than usual or unevenly, it could be a sign that the ball joints are causing improper wheel alignment. Uneven tire wear not only reduces tire lifespan but also affects vehicle handling and safety.
5. Excessive Play in the Wheel
If you suspect that the ball joints are bad, it’s essential to check for excessive play in the wheel. To do this, lift the vehicle and grab the wheel at the 12 o’clock and 6 o’clock positions. Gently push and pull the wheel in and out. If there is noticeable movement or play, it could indicate that the ball joints are worn or loose. This play happens because the ball joint is no longer securely holding the wheel in place, compromising the vehicle’s stability.
6. Vehicle Pulling to One Side
If the vehicle is pulling to one side when driving on a straight path, it could be a result of bad ball joints. The wear and tear on the ball joint cause a misalignment of the wheel, making the vehicle veer to one side. While misalignment can also be caused by other issues, such as tire pressure or suspension problems, bad ball joints are a likely cause, especially if the pulling happens while driving straight and without braking.
7. Difficulty in Cornering
Another sign of bad ball joints is difficulty when making turns or cornering. As the ball joints wear out, the suspension components are no longer able to properly support the weight distribution when the vehicle turns. This can cause the vehicle to feel unstable during turns and may make the steering feel more difficult, especially at higher speeds. In some cases, you may feel the car swaying or “floating” through corners.
8. Increased Tire Noise
If the ball joints are worn out, you may hear increased tire noise while driving. This is because bad ball joints can affect the alignment of your vehicle, causing the tires to make more contact with the road unevenly. The uneven pressure on the tires creates extra noise, which can be particularly noticeable when driving at higher speeds or on rougher roads.
Diagnosing and Inspecting Ball Joints
To assess the condition of your ball joints, a mechanic may perform several tests:
- Visual Inspection: Checking for visible signs of wear, such as torn boots or grease leakage.
- Physical Movement Tests: Lifting the vehicle and applying force to the wheel to detect any play or movement in the ball joint.
- Alignment Checks: Ensuring that the wheels are properly aligned, as misalignment can exacerbate tire wear.
Why Are Bad Ball Joints Dangerous?
Bad ball joints are not just a nuisance—they are a serious safety concern. Worn ball joints can cause your vehicle to lose control, especially during turns or when driving over rough roads. As the ball joint deteriorates further, the steering control becomes increasingly compromised, and in extreme cases, the ball joint can completely fail, leading to a loss of the ability to steer the vehicle.
If you notice any of the symptoms mentioned above, it’s crucial to have your vehicle inspected by a qualified mechanic as soon as possible. Ignoring the issue could lead to costly repairs and, more importantly, put your safety and the safety of others on the road at risk.
Preventive Measures and Maintenance
To extend the life of your ball joints and tires:
- Regular Inspections: Have your suspension system checked periodically by a professional.
- Proper Alignment: Ensure that the wheels are correctly aligned to prevent uneven tire wear.
- Timely Replacements: Replace worn ball joints promptly to maintain vehicle safety and performance.
Frequently Asked Questions
Here are some FAQs about bad ball joints tire wear patterns –
1. How do I know if my ball joints are bad?
Symptoms include clunking noises, steering issues, vibrations, and uneven tire wear.
2. Can bad ball joints cause tire wear?
Yes, they can lead to misalignment, resulting in uneven tire wear patterns.
3. How often should ball joints be replaced?
It varies by vehicle and driving conditions, but generally, every 70,000 to 150,000 miles.
4. Is it safe to drive with bad ball joints?
No, it can compromise vehicle control and safety.
5. Can I prevent ball joint wear?
Regular maintenance, proper alignment, and avoiding rough driving conditions can help.
Conclusion
Bad ball joints can significantly impact your vehicle’s performance and safety. Recognizing the signs of worn ball joints and addressing them promptly can prevent uneven tire wear and other related issues. Regular maintenance and inspections are key to ensuring the longevity of the vehicle’s suspension system and overall driving experience.
