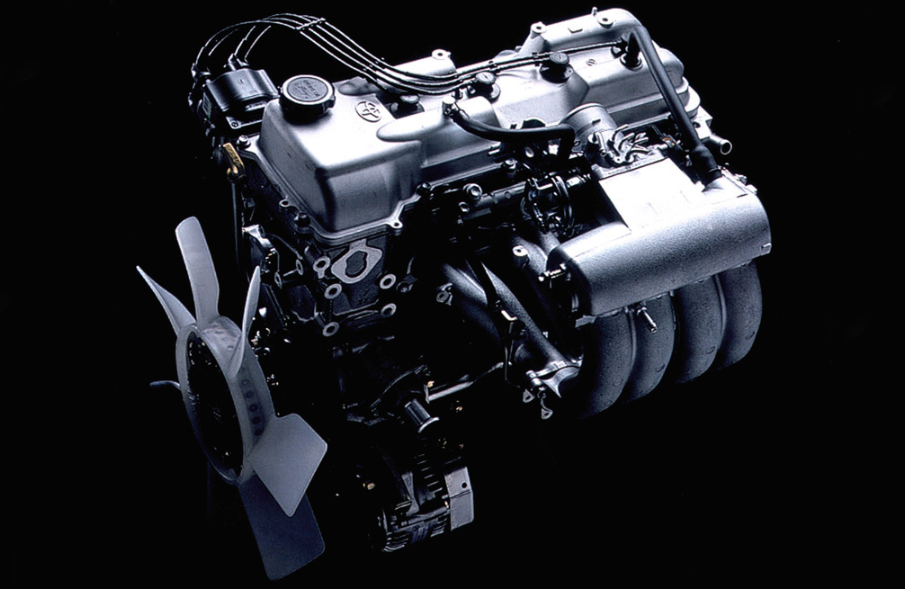

Toyota 3RZ engine teardown is the process of disassembling the engine to inspect and replace parts like pistons and timing belts. It’s essential for diagnosing issues or rebuilding the engine.
The Toyota 3RZ is a 2.7-liter, 4-cylinder engine, known for its reliability and overall performance. It can be found in numerous Toyota models, including, 4runner, Tacoma, and the Hilux. It delivers adequate power for off-road driving and light towing. Because of its popularity and performance, many enthusiasts and mechanics take these engines apart for routine servicing, performance upgrades, or troubleshooting.
This guide will provide a full walk through for the reason and processes associated with engine tear down and rebuild.
Contents
Why Tear Down a Toyota 3RZ Engine?
Before you start the process of a Toyota engine teardown, you should examine and be prepared for a few issues. Why are you building the engine? Here are a few examples of where an engine tear down is needed.
1. Issues Related to Engine Performance
Estimated fuel economy, acceleration, and overall drive of the engine can be negatively impacted by aftermarket performance engines. To be able to build the engine, you must first see what the issues are. Issues related to performance can surface in the form of knocking sounds, increased idle, and excessive consumption of oil. In each of those scenarios, achieving a successful build would require you to address the oil consumption issue.
2. Rebuilding for Longevity
As the years go by your engine goes through a lot of wear and tear. Parts like the piston rings, bearings and valve seals tend to become less effective over time, lowering your engine’s compression, and therefore also dropping efficiency. By rebuilding your engine, and replacing the old and worn parts, you can restore the engine’s full potential.
3. Upgrading Engine Components
Another reason enthusiasts take their engine apart is to add performance upgrades. This could is commonly the completion of the engine if forged pistons and high-performance camshafts are worth turbocharging.
4. Regular Maintenance
In performing regular maintenance, you may need to disassemble some of the engine’s components to replace the timing belt, gaskets, seals, and head bolts. A disassembly, is very helpful to clean the components to resolve future issues of clogged oil passages, and internally dirty parts.
5. Diagnosing Overheating Issues
When fixing an engine that has overheating issues, you may need to take apart the cylinder head since it may become warped or cracked. It’s important to do a teardown to check the cylinder head and replace it if necessary.
Preparing for a Toyota 3RZ Engine Teardown
Engine teardown is a process that requires a good deal of preparation. Understanding the engine’s components, getting the necessary tools and making sure your work space is clean are essential to a smooth process.
Required Tools
In order for the teardown process to be successful, the following tools are needed for the Toyota 3RZ engine.
- Socket Set: 3RZ Toyota engines use metric sized bolts and nuts so a metric socket set is preferred.
- Torque Wrench: Crucial for tightening bolts to exact specifications.
- Engine Stand: These are vital for the teardown process to hold the engine securely.
- Piston Puller: Tool to remove pistons from the engine block.
- Timing Belt Tools: There are specialty wrenches or sockets to adjust the timing belt tensioner.
- Seal Pullers: These help remove seals and gaskets from the engine without damaging other components.
- Rags and Brushes: Keep the engine pieces free of contaminants so they can be reused for the reassembly. Give pieces the appropriate wash while to keep pieces debris free.
Step-by-Step Guide: Toyota 3RZ Engine Teardown Process
In the subsequent sections, the other steps necessary for the teardown, such as removing key components and disconnecting the battery, will be detailed. Each step will focus on a few components of the engine to highlight a few of the ways engines are designed, and best practices as the teardown will be the primary focus of the step.
Step 1: Preparation and Safety
Before starting any engine teardown, you need to prepare yourself for the teardown by cleaning the area you are going to work in. Once finished, organize your tools and materials and set the engine on a well-constructed engine stand. Make sure you have good lighting and enough room to organize components whenever you have to take a part out. Always use the proper safety gear like safety gloves and goggles.
Disconnect the Battery: Connect the engine to the battery to prevent sparks and other associated risks.
Drain Fluids: Drain the engine oil, coolant, and fuel. This step is essential to avoid spills or accidents when disassembling components.
Step 2: Removing External Components
When engine teardown begins, external components must first be removed.
- Get rid of the Intake and Exhaust Manifolds: Take off the air intake system and the exhaust pipes. They should be removable and should be held on with some screws.
- Detaching The Accessory Belts: There should be some belts on the console and they should be connected to the compressor, the steering pump, and the alternator. You should be able to loosen and remove those.
- Remove the Timing Belt Cover: The timing cover is probably made of plastic and is the cover for the timing belt. Take that off, it should be able to be reused if you don’t break it.
- Remove the top of the engine: After you remove those belts and covers, you should be able to remove the top of the engine. Look for the gaskets on the covers and check if they need to be changed.
Step 3: Taking Off the Timing Belt and Cylinder Head
The timing belt is an essential part of the engine’s valve timing system, and as such, it must be taken off very carefully.
- Taking Off Timing Belt: To remove the timing belt, loosen the tensioner, then take off the timing belt. Before you remove it, be sure to mark the timing marks so you can do it properly when reinstalling it.
- Taking Off Cylinder Head: To remove the cylinder head, loosen the bolts of the cylinder head in a particular sequence so as to not to cause it to warp. Start at the center and then work your way to the edges. Once the bolts have been removed, lift the cylinder head off the block. This must be done carefully as the cylinder head may have a little bit of coolant or oil in it, and may spill out during the process.
Step 4: Taking Apart the Bottom End
Now that the cylinder head is off, you can access the bottom end of the engine, and that also includes the crankshaft and pistons.
- Taking Out the Oil Pump: To begin, take out the oil pump which is at the bottom of the engine. During this process, also check the oil pump to see if it has any wear or damage to it.
- Taking Out the Pistons: Using a piston puller or a special tool, carefully take out the pistons from the cylinders. While doing this, keep an eye out for the condition of the piston and its rings.
Step 5: Cleaning and Inspecting Components
After completing the teardown of the engine, the next step is cleaning all components using degreasers, brushes and clean rags. During the cleaning process, all parts will be examined for signs of wear, cracks and damages. This will include the following components:
- Cylinder Head: Examine for cracks and warping. If the head shape is deformed, it needs to be resurfaced or replaced.
- Pistons and Rings: Inspect the piston surfaces for scoring or damages. Worn piston rings will need to be replaced.
- Crankshaft Bearings: Worn bearings must be replaced.
- Oil Passages: Ensure the engine will be properly lubricated post-reassembly by cleaning the oil passages.
- Crankshaft: After the pistons have been removed, check the crankshaft. Inspect for cracks and damage to the crankshaft bearings or wear on the journals.
Addressing Basic Problems While Disassembling the 3RZ Engine
Problems that require your attention can arise while disassembling the engine. Here’s a summary of some frequent issues that arise when disassembling the 3RZ engine.
1. Reluctant Bolts
Most of the bolts can be problematic for the removal process because of the high heat or corrosion exposure. It is usually problematic for bolts that are located around the oil pan or the exhaust manifold. Apply some penetrating oil to the bolt that is problematic to lose, for example, you can use PB Blaster or WD-40 and allow the oil to sit for a few minutes. An impact wrench can be used as a last resort when a bolt is reluctantly corroded.
2. Harmed Timing Components
All of the timing components around the engine are vital for the engine’s functionality. If the timing for the engine is broken, it has to be repaired with immediate effect. By chance, if you are having problems with taking out the timing belt, the tensioner might be set too high. This should be corrected in order to proceed.
3. Oil Leak and Worn Seals
Oil leaks are usually caused by worn seals surrounding the timing components or the cylinder head. During the teardown, check all the seals and make sure to replace them when putting everything back together. Worn seals that cause oil leaks the most are the valve seals, the oil pan seals, and the camshaft seals.
4. Damage Caused by Overheating
One sign that the engine has been overheating is a warped or cracked cylinder head. Additionally, overheating can cause scoring or cracking to the pistons. Check the cylinder head carefully for signs of warpage with a feeler gauge or a straightedge. The head likely needs resurfacing if you see any unevenness. A cracked cylinder head may mean you need to replace it completely.
Rebuilding the Toyota 3RZ Engine
Once the components are inspected and the engine is torn down, the next step is rebuilding the engine. The rebuilding process is crucial to ensure everything functions as it should after teardown.
1. Surface the Cylinder Head
If the cylinder head is damaged or warped, it will need to be resurfaced or replaced. The cylinder head must be completely flat so it can seal properly with the engine block. You can do the resurfacing at a machine shop, or you can fully replace the cylinder head if the damage is too extreme to resurface.
2. New Pistons and Rings
Old pistons and rings need to be replaced. You should also check the condition of the connecting rods. If they are worn, you should replace them as well. When you are replacing pistons, be sure to match the size and material so the engine can maintain proper compression.
3. Reinstalling the Crankshaft
Put the crankshaft back into the engine block and torque it to the proper specifications. It’s recommended to use new bearings to prevent engine failure. The crankshaft should be able to rotate without any binding. Remember to replace the rear main seal when you are putting the crankshaft back in.
4. Installing New Gaskets and Seals
During a rebuild, all gaskets and seals should be replaced to avoid leaks. Head gaskets, timing belt seals, oil seals, and all other seals and gaskets should be replaced. Gaskets and seals of poor quality should be avoided, as they can lead to leaks and substantial engine damage.
5. Putting the Engine Back Together
After the internal components have been placed, the engine can be reassembled. Every bolt must be tightened to ensure they are within the proper torque specs, and the timing belt must be put in its correct position. Before the engine is closed, everything should be checked. It is recommended to turn the engine by hand a minimum of two full revolutions to check to make sure all parts are properly aligned and that the engine turns freely.
Frequently Asked Questions
Here are some FAQs about Toyota 3RZ engine teardown –
- What is the Toyota 3RZ Engine Used In?
The Toyota 3RZ engine can be found in the Toyota Tacoma, 4Runner, and Hilux, but only in the four-cylinder models.
- How Long Does a Toyota 3RZ Engine Take to Tear Down?
The time involved in totally tearing down an engine can take between 6 to 12 hours, and is determined by the level of your experience, as well as the tools you have.
- What Parts Are Replaced During a Toyota 3RZ Engine Teardown?
Parts that must be replaced to be of any importance upon a teardown would be gaskets, seals, timing belts, pistons, rings, and other valve components.
- Can a 3RZ Engine Teardown Be Done At Home?
Yes, it can be done as long as the tools for your job are assembled, there is a good and clean area to work, and you have the knowledge, the teardown can be done at home.
- What Is the Cost to Rebuild a Toyota 3RZ Engine?
Depending on the amount of labor involved, if any engine components need to be replaced, the price to rebuild a Toyota 3RZ engine typically ranges from $1,500 to $3,500.
Conclusion
For an enthusiast or mechanic, the teardown of a Toyota 3RZ engine is a difficult, but in the end, rewarding task. This teardown and rebuild process can be completed by anyone with the help of the blade. Regardless of whether you are simply doing maintenance, troubleshooting an issue, or upgrading the engine for performance, the teardown process and internal parts must be known.
Remember to take your time, follow the steps as outlined, and replace worn or broken parts when rebuilding. With the right tools and experience, the process of tearing down a Toyota 3RZ engine can be highly beneficial and extend the life of the beautiful engine.
